Specifications
| HDIII 38/17 Graphite Block Specifications | |
|---|---|
| Indicative permissible flow rate (t/m) RcK • 30 N/mm² interp. h = 3.00 m | 28 |
| Thermal transmittance U of the plastered wall including W/m²K wall limits. 3D Method * | – |
| Thermal transmittance U of the plastered wall including W/m²K wall limits. 2D Method ** | 0,15 |
| Periodic thermal transmittance YIE [W/m²K] | 0,010 |
| Sound insulation (dB) ** | 53 |
| Concrete requirement l/m² | 104 |
| Weight of the blocks Kg/m² | 88 |
| Weight of the single block (without concrete) Kg | 11 |
| Weight of the unplastered concrete wall Kg/m² | 338 |
| Concrete thickness (cm) | 12 |
| Block wall thickness (cm) | 4,5 |

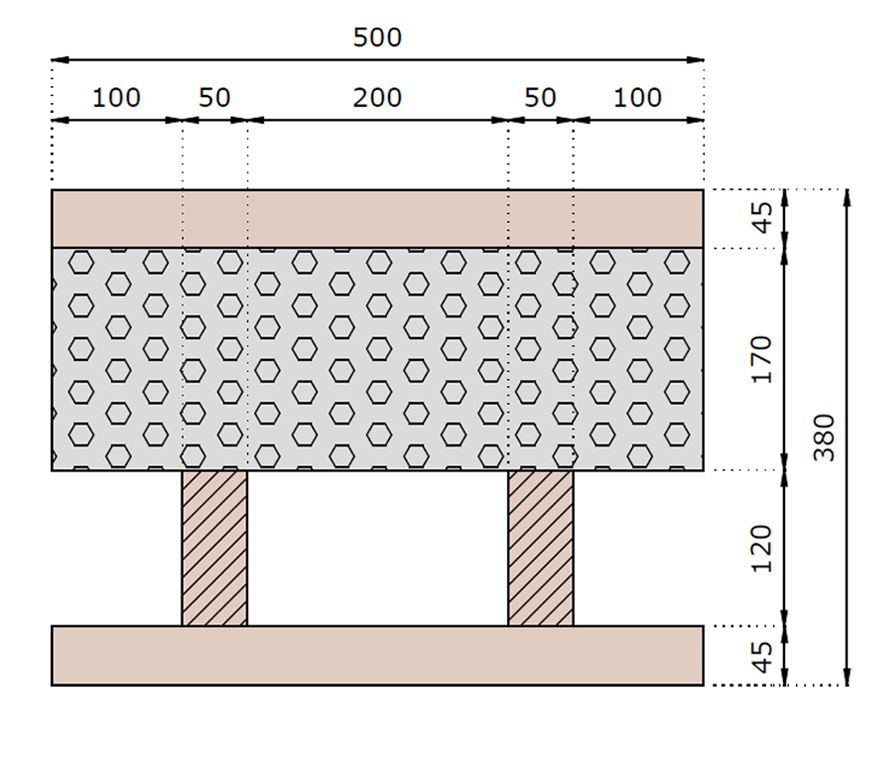

| Block size (cm) | 50x25x38 |
| Fire resistance Class REI | 120 |
| BASF Neopor® BMBcertTM graphite thickness (cm) | 17 |
* The calculation of thermal transmittance has been performed according to the criteria of standards UNI 10355 and UNI EN ISO 6946, using a three-dimensional finite element calculation application validated according to EN 10211/1 and on the basis of thermal conductivity data obtained from experimental evidence (website www.blocchiisotex.com).
**Indicative two-dimensional calculation according to standardsUNI-TS13788, UNI10355 an dUNI10351. ***Note: the test certificates can be requested from ISOTEX or consulted on the website www.blocchiisotex.com. The tests were field tests in which the datawas elaborated according to the indications provided by technical standards UNIENISO140andUNIENISO717. ****Tests performed in the laboratory according to standards UNIENISO140-3:2006 and UNIENISO717-1:2007.
***** Tests performed in the laboratory according to standardsUNIENISO10140-2:2010andUNIENISO717-1:2007. In reference to the type of material purchased, the company will provide the declaration of performance EC(DOP).
Block Wooden cement formwork –Â HDIII 38/17
With graphite insert Neopor® BMBcertTM from BASF
